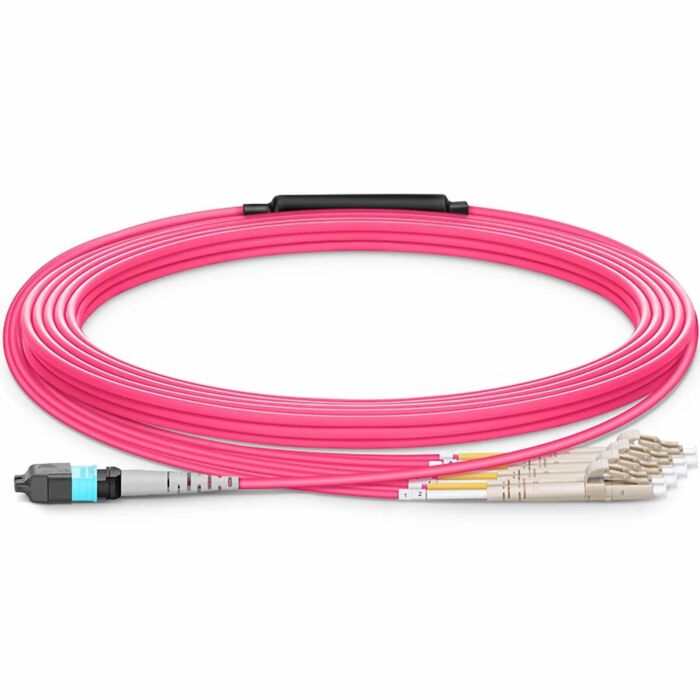

2m (7ft) MTP Harness, MTP-8 UPC to 4 x LC UPC Duplex, 8 Fibers, Multimode (OM4) - [8FMTPLCOM4]
Delivery
Click and Collect
Click and Collect
2m OM4 MTP Harness [8FMTPLCOM4]
MTP-8 UPC to 4 x LC UPC Duplex, 8 Fibers, Multimode (OM4), Plenum (OFNP), 0.35dB Max, Type B - Magenta [8FMTPLCOM4]
The FS 8FMTPLCOM4 is a high-performance, pre-terminated MTP-to-LC breakout harness engineered for modern high-density fiber deployments in data centers and enterprise networks. This 2-meter harness features a single MTP-8 connector fanning out to four duplex LC connectors, providing a clean, organized transition from 40/100GbE backbone links (using MTP interfaces) to individual 10/25GbE server or switch ports. Constructed with OM4 bend-insensitive multimode fiber, it ensures reliable, high-bandwidth performance for 10/40/100GbE applications with low insertion loss. The plenum-rated (OFNP) cable jacket makes it safe for installation in air-handling spaces, while its factory-terminated ends guarantee optimal performance and save significant installation time compared to field termination, ensuring a quick and reliable upgrade path for your high-speed network infrastructure.
Key Features
- MTP-8 to 4xLC duplex for 40/100G to 10/25G migration
- OM4 bend-insensitive fiber for high-bandwidth applications
- Low insertion loss (≤0.35dB MTP, ≤0.2dB LC) for optimal signal
- Plenum-rated (OFNP) jacket for safe air-handling space installation
- Factory-terminated for reliable, plug-and-play deployment
Simplify and accelerate high-density 40/100G network deployments. This harness provides a reliable, plug-and-play transition from MTP trunks to LC equipment, saving hours of termination time while ensuring optimal OM4 performance and plenum safety.
Length
2 meters
Connector A
MTP-8 Female (UPC, Non-Pinned)
Connector B
4 x LC Duplex (UPC)
Fiber Type
OM4 Multimode, 50/125μm, Bend Insensitive
Polarity
Type B
Cable Jacket
Plenum (OFNP)
Insertion Loss
≤0.35 dB (MTP), ≤0.2 dB (LC)
Operating Wavelength
850nm / 1300nm
Minimum Bend Radius
7.5 mm
Breakout Length
0.5 m
Operating Temperature
-10°C to +60°C (14°F to 140°F)
