ALOGIC 1.5m Orange CAT6 network Cable [C6-1.5-Orange]

SKU 706738
$4.00
In StockDispatch in 1-2 Working days
$4.00

ALOGIC 1.5m Orange CAT6 network Cable [C6-1.5-Orange]

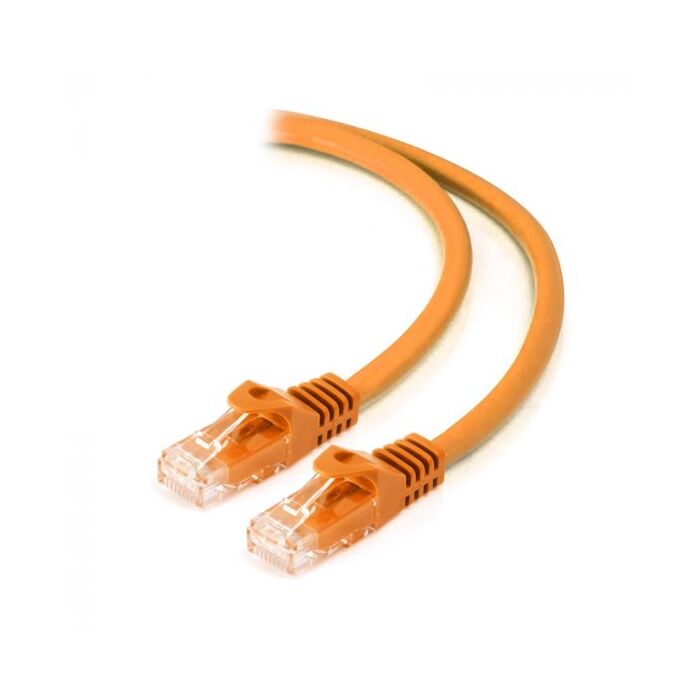

ALOGIC Cat6 snagless patch cables are ideal for transferring large volumes of voice, data, video and communications signals.



Connect Your Ethernet Devices

ALOGIC Cat6 snagless patch cables are ideal to handle ultra-high speed and multi-gigabit protocols to transfer large volumes of voice, data, video and communications signals. ALOGIC CAT6 cables can help to improve the networks speeds by reducing impedance loss and network return loss in your network by as much as 4 %. The cables consist of 4 pairs of 24 AWG insulated copper conductors separated by a cross to maintain a uniform distance between them which leads to improved cross talk performance, low insertion loss and higher data rates. Gold plated connectors ensure crystal clear transmission and the custom designed snagless boot protects the cable from any damage during installation.



All Alogic Cat6 cables are A-Tick compliant with ACMA requirements.

Supports 10Base-T, 100Base-T, and 1000Base-T Network.

Constructed from high quality cable and a shortened body plug, this design minimizes Near-End Crosstalk (NEXT) levels.

Meets and exceeds all Cat6 TIA/EIA-568-B-2.1, draft 9 standards

50-micron gold-plated connectors to ensure clear transmissions.

Snagless moulded connectors to protect the RJ45 retaining clips from damage during installation.



Compliance

RoHS Compliant



Input

8P8C (RJ45)



Wiring Scheme

T568A



Standard

Category 6 TIA/EIA-568-B-2.1, draft 9



Connector

50 micron gold-plated RJ45



Temperature Rating

60°C



Voltage Rating

30V



Jacket

PVC



Conductor Type

24AWG (7/0.20), Stranded Bare Copper
