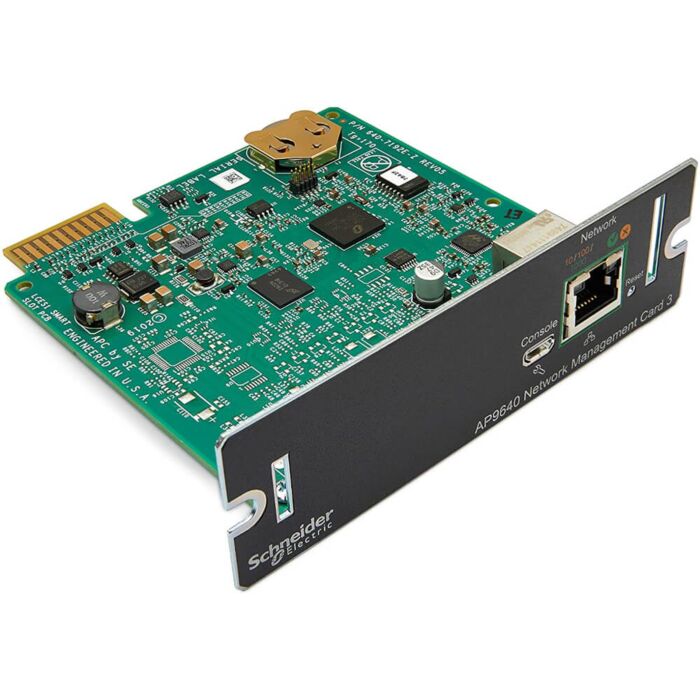

APC UPS Network Management Card with Powerchute Network Shutdown [AP9640]
APC UPS Network Management Card with Powerchute Network Shutdown [AP9640]
Remote monitoring and control of an individual UPS by connecting it directly to the network.
Command line interface
Offers simultaneous remote management access through Telnet and SSH
Device Encryption
Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
Gigabit Ethernet Support
Supports faster Communication at 1 Gbps (Gigabit per second) over Network.
IPv6 Support
Capable of operating on a network using IPv6 protocol.
Micro-USB based Console Support
For faster and easier Troubleshooting and Configuration.
Modbus TCP Support
Supports reporting UPS information to Building Management Systems or other third-party management systems via Modbus TCP.
Multiple user access
Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users.
Root of Trust Support
Supports Secure Boot with Root of Trust for enhanced Security.
Standard UPS RFC 1628 MIB Compatible
Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
Provided equipment: User manual, USB cable
Standards: EN 55022 class A, EN 55024, ICES-003
Certifications: AS/NZS 3548 (C-Tick) class A, FCC part 15 class A, GOST, VCCI class A
Authentication: Radius
Dimension: 23.5 x 15.9 x 5.1 cm
Weight: 0.34 g
Warranty: 2 Years Warranty
