Aten CS-9138 8 Port Rackmount PS2 KVM Switch with OSD

SKU 562858
$199.00
Low In StockSelling fast!
$199.00

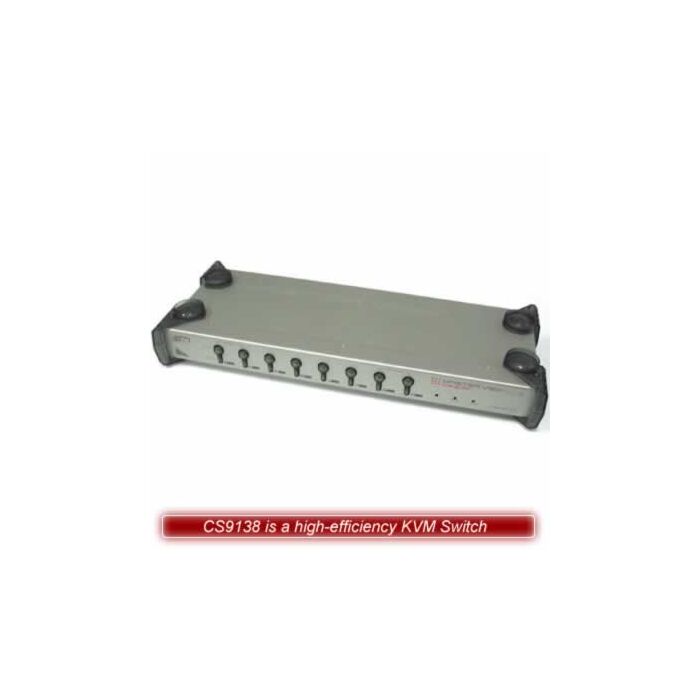

Aten [CS-9138] 8 Port Rackmount PS2 KVM Switch with OSD

CS9138 is a high-efficiency KVM Switch which provides the most efficient solution to fulfill the management needs of server networks. It is a KVM Switch with 8 ports and can control 8 computers. It allows connections in 3 tiers by cascade. With 73 sets of CS9138, users can connect up to 512 servers.

Features

One PS/2 console controls 8 computers.

Cascadable up to 3 levels - provides up to 512 computers.

Computer selection via front panel pushbuttons, hotkeys or On Screen Display (OSD).

Keyboard and mouse emulation for error free booting.

Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse, IBM Scrollpoint Mouse.

OSD automatically adjusts to resolution changes.

Auto Scan function to monitor computer operation.

Superior video quality: up to 1920 x 1440; DDC2B.

Available in silver and black.

Special design for easy stacking.

Rack mountable in 19" (1U) system rack.

Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD.

 Aten [CS-9138] 8 Port Rackmount PS2 KVM Switch with OSD

CS9138 is a high-efficiency KVM Switch which provides the most efficient solution to fulfill the management needs of server networks. It is a KVM Switch with 8 ports and can control 8 computers. It allows connections in 3 tiers by cascade. With 73 sets of CS9138, users can connect up to 512 servers.

Specifications

  • Computer Connections: 8
  • Port Selection: OSD, Hotkey, Pushbutton
  • Connectors
    • Console Ports:
      • 1 x 6-pin Mini-DIN Female (Purple)
      • 1 x 6-pin Mini-DIN Female (Green)
      • 1 x HDB-15 Female (Blue)
    • KVM Ports:
      • 8 x 6-pin Mini-DIN Female (Purple)
      • 8 x 6-pin Mini-DIN Female (Green)
      • 8 x HDB-15 Male (Blue)
