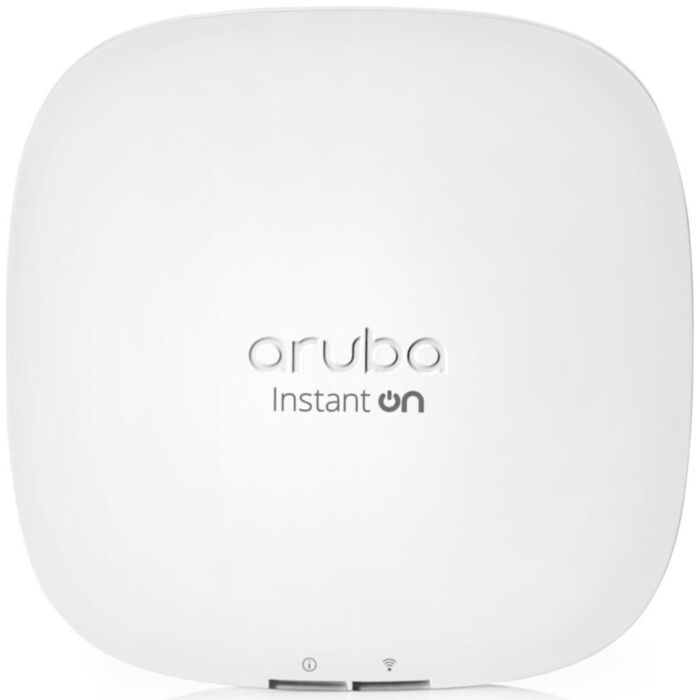

HPE Aruba Instant ON AP22 Radio Access Point [R4W02A]
- 1 UNIT LEFT
Delivery
Click and Collect
Click and Collect
HPE Aruba Instant ON AP22 Radio Access Point [R4W02A]
Wi-Fi antenna
Integrated down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
Connectivity, standard
IEEE 802.11ax
Ports
1 uplink Gigabit Ethernet port, with POE-in support (802.3af)
Mounting
The access point ships with a white mount clip that can attach to both wall and ceiling.
Power Consumption
Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
Radio coverage
Dual Radio for simultaneous dual-band operation
5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi-User MIMO support (Wi-Fi 6)
2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Weight
500 g
Dimensions
37 x 160 x 160 mm
HPE Aruba Instant ON AP22 Radio Access Point [R4W02A]
Wi-Fi antenna
Integrated down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
Connectivity, standard
IEEE 802.11ax
Ports
1 uplink Gigabit Ethernet port, with POE-in support (802.3af)
Mounting
The access point ships with a white mount clip that can attach to both wall and ceiling.
Power Consumption
Max power consumption (worst-case): 10.1W (PoE), 8.8W (DC)
Radio coverage
Dual Radio for simultaneous dual-band operation
5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi-User MIMO support (Wi-Fi 6)
2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Weight
500 g
Dimensions
37 x 160 x 160 mm
