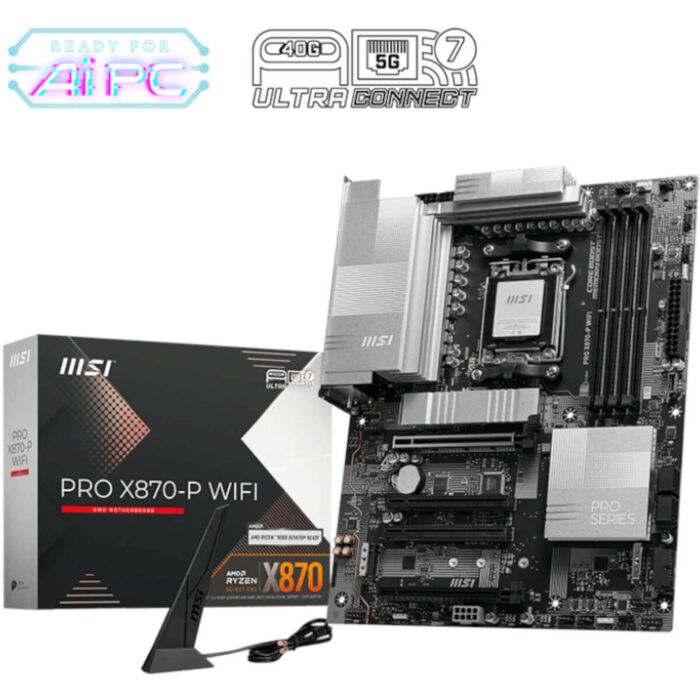

MSI PRO X870-P WIFI, AMD AM5 ATX Motherboard [PRO X870-P WIFI]
Delivery
Click and Collect
Click and Collect
MSI PRO X870-P WIFI, AMD AM5 ATX Motherboard [PRO X870-P WIFI]
The MSI PRO X870-P WIFI is a high-performance ATX motherboard built for AMD Ryzen 9000/8000/7000 series processors on the AM5 socket. Featuring PCIe 5.0 x16 and DDR5-8200+ (OC) support, it delivers future-proof expansion and blazing-fast memory speeds. Equipped with 3x M.2 slots (PCIe 5.0 x4 + 4.0 x4/x2), USB4 (40Gbps), and Wi-Fi 7 (5.8Gbps), it’s optimized for gamers, creators, and power users. The 14+2+1 Duet Rail power system ensures stable overclocking, while 5G LAN and ALC897 audio enhance connectivity and immersion. With EZ Debug LEDs and BIOS Flashback, it’s a reliable foundation for high-end AM5 builds.
Key features of the MSI PRO X870-P WIFI:
- AM5 (Ryzen 9000/8000/7000)
- DDR5-8200+ (OC)
- PCIe 5.0 x16 + 3x M.2
- USB4 (40Gbps) + Wi-Fi 7
- 14+2+1 Duet Rail VRM
- 5G LAN + ALC897 audio
The PRO X870-P WIFI [PRO X870-P WIFI] balances premium features with workstation reliability. Its PCIe 5.0/NVMe 5.0 support future-proofs storage/GPU upgrades, while DDR5-8200+ unlocks Ryzen’s full potential. Ideal for enthusiasts and content creators, it’s a cost-effective AM5 board with pro-grade connectivity and MSI’s robust engineering.
CPU & Socket
Socket
AM5
Supported CPUs
AMD Ryzen 9000/8000/7000 Series
Memory
Slots
4x DDR5 UDIMM
Max Capacity
256GB
Supported Speeds
JEDEC: DDR5-4800~5600
OC: Up to DDR5-8200+ (1DPC 1R)
Channels
Dual-Channel
Expansion Slots
PCIe 5.0 x16
1x (From CPU)
PCIe 4.0 x4
1x (From Chipset)
PCIe 3.0 x1
2x (From Chipset)
Storage
M.2 Slots
3x:
M2_1: PCIe 5.0 x4 (CPU)
M2_2: PCIe 4.0 x4 (Chipset)
M2_3: PCIe 4.0 x2 (Chipset)
SATA Ports
4x SATA 6Gbps
RAID Support
RAID 0/1/5 (NVMe)
RAID 0/1 (SATA)
USB & Connectivity
Rear USB
1 x USB4 (40Gbps Type-C)
1 x USB 20Gbps (Type-C)
2 x USB 10Gbps (Type-A)
2 x USB 5Gbps (Type-A)
4 x USB 2.0
Front USB
1 x USB 10Gbps (Type-C)
2 x USB 5Gbps (Type-A)
4 x USB 2.0
Networking
LAN
Realtek RTL8126VB 5G Ethernet
Wireless
Wi-Fi 7 (BE)
Up to 5.8Gbps
BT 5.4
Audio
Codec
Realtek ALC897
Channels
7.1-Channel HD Audio
Power Design
VRM
14+2+1 Duet Rail Power System
Power Connectors
1 x 24-pin ATX
2 x 8-pin CPU
1 x 8-pin PCIe
Cooling
Headers
1 x CPU Fan
1 x Pump/System Fan
6 x System Fan
Internal I/O
RGB Headers
3 x ARGB (5V)
1 x RGB (12V)
Other Headers
TPM 2.0
BIOS Flashback
Front Panel Audio
Form Factor
Size
ATX (304.8 x 243.84 mm)
BIOS & OS
BIOS Features
EZ Debug LED, Flash BIOS Button
OS Support
Windows 11 64-bit
