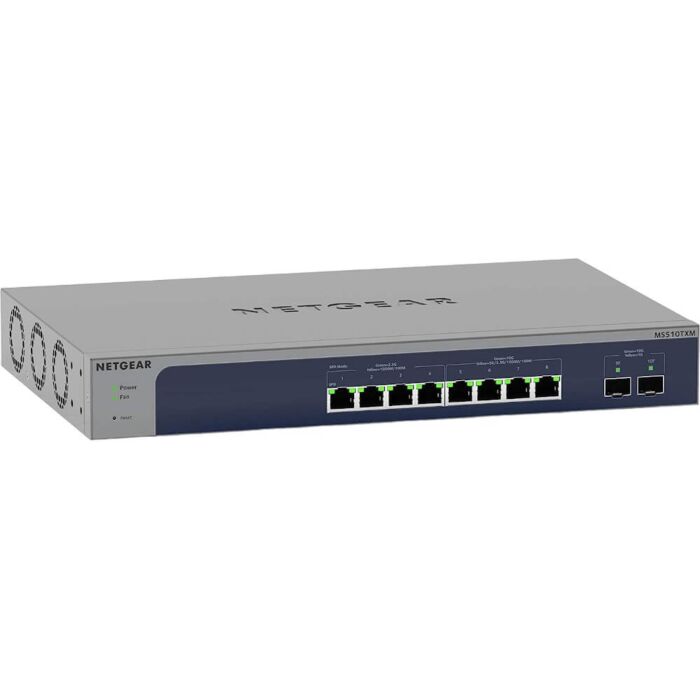

Netgear 10-port Multi-Gig Smart Switch [MS510TXM-100AJS] 8 x Multi-gig, SFP+, Cloud Management
Delivery
Click and Collect
Click and Collect
Netgear 10-port Multi-Gig Smart Switch [MS510TXM-100AJS]
8 x Multi-gig, SFP+, Cloud Management
The Netgear MS510TXM-100AJS is a high-performance 10-port Multi-Gig Smart Switch that offers flexible and reliable networking solutions for modern businesses and enterprises. With its multi-gigabit copper ports, 10-gigabit copper ports, and SFP+ ports, this smart switch delivers exceptional data transfer speeds to support the increasing demands of today's data-intensive applications and devices.
The MS510TXM-100AJS features four multi-gigabit copper ports that support speeds of 1G, 2.5G, and even 5G, offering seamless connectivity for a wide range of devices, from legacy 1G devices to high-speed 5G-enabled equipment. Additionally, four multi-gigabit/10-gigabit copper ports with 1G, 2.5G, 5G, and 10G capabilities provide future-proof networking for organizations looking to scale their networks.
To accommodate high-speed data transfers and interconnect with other networking devices, the switch also includes two SFP+ ports, allowing for fiber or copper connections with compatible equipment.
With a generous capacity of 32K MAC entries and a buffer size of 16Mbit, the MS510TXM-100AJS can efficiently handle large amounts of network traffic without compromising performance.
The switch supports a total of 256 VLANs, enabling effective network segmentation and management to ensure optimal data flow and security. VLAN routing further enhances network efficiency by facilitating communication between different VLANs.
Dynamic VLAN assignment simplifies network administration, automatically categorizing devices based on pre-defined parameters, while MLD Snooping optimizes multicast traffic delivery, conserving bandwidth and improving network performance.
The MS510TXM-100AJS includes advanced features such as Static routing (supporting up to 32 routes) and DoS Prevention to fortify network security against potential cyber threats.
With an internal power supply, the switch offers a tidy and clutter-free networking setup. It operates with a maximum power consumption of 47W, ensuring energy efficiency even under full load.
Featuring two fans, the switch maintains optimal temperature regulation to ensure reliable and consistent performance without overheating. The low acoustic noise level of 25.0 dBA ensures a quiet working environment.
Operating within a temperature range of 0 to 50°C, the switch is built to withstand demanding conditions, making it suitable for deployment in various environments.
With a remarkable MTBF of 1,059,519 hours, the MS510TXM-100AJS is a robust and dependable networking solution that can handle the rigors of continuous operation.
The Netgear MS510TXM-100AJS 10-port Multi-Gig Smart Switch offers exceptional networking capabilities with multi-gigabit and 10-gigabit ports, advanced VLAN support, and comprehensive security features. With its reliable performance, efficient power consumption, and future-proof design, this smart switch is the perfect choice for organizations seeking a scalable and high-performance network infrastructure. Experience the power of modern networking with the Netgear MS510TXM-100AJS Smart Switch.
Multi-gigabit copper ports
4 (1G/2.5G)
Multi-gigabit/10 Gigabit copper ports
4 (1G/2.5G/5G/10G)
SFP+ ports
2
Max MAC entries
32K
Buffer size
16Mbit
VLAN (Number Supported)
256
VLAN routing
Yes
Dynamic VLAN assignment
Yes
MLD Snooping
Yes
Static route
Yes (32)
Host ARP table
512 ARP
EEE
Yes
DoS Prevention
Yes
Internal/External PSU
Internal
Max power (worst case, all ports used, line-rate traffic)
47W
Fans
2
Acoustic Noise Level @25C
25.0 dBA
Operating Temperature
0 to 50C (32 to 122F)
MTBF
1,059,519 hrs (121 yrs)
Dimensions (W x D x H)
330 x 206 x 43 mm
Weight
2.08 kg
