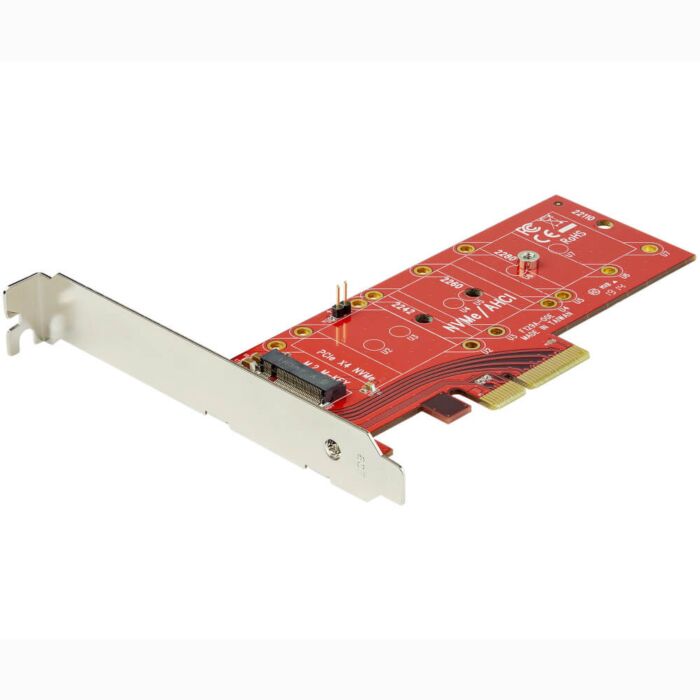

StarTech M.2 to PCI Express Adapter [PEX4M2E1]
SKU
708300
MPN
PEX4M2E1
View all technical specifications
Delivery
In Stock
Delivery
In Stock
Ships in 2 to 3 business days
This Item Is In Stock And Will Be Dispatched Within 2-3 Business Days, Subject To Order Processing & Payment Clearance. You Will Receive An Email Confirmation Once Your Order Ships
Ships in 2 to 3 business days
Click and Collect
Melbourne CBD
Back-Order
Click and Collect
Back-Order
Ships in 2 to 3 business days
This Item is Available for Back-order. Call us for estimated ETA
Mitcham
Back-Order
Click and Collect
Back-Order
Ships in 2 to 3 business days
This Item is Available for Back-order. Call us for estimated ETA
A$55.00
StarTech M.2 to PCI Express Adapter [PEX4M2E1]
Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.
The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.
The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.
Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.
The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.
The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.
Hardware
Interface
PCI Express x4
Bus Type
PCI Express
Number of Drives
1
Drive Size
22m - M.2 NGFF
Compatible Drive Types
M.2 (PCIe, AHCI, M-Key, NGFF)
M.2 (PCIe, AHCI, M-Key, NGFF)
Drive Installation
Fixed
Supported Drive Height(s)
2242
2260
2280
22110
Performance
Type and Rate
PCI Express 3.0 (8 Gbps)
Connector(s)
Drive Connectors
M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)
Host Connectors
PCI Express x4
Software
OS Compatibility
OS independent, No software or drivers required
Special Notes / Requirements
Note NVMe SSDs require drivers provided by the manufacture of the drive or may be natively provided by the OS (Windows 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support.
Indicators
LED Indicators
Pin header on board for drive LED connection
Physical Characteristics
Material
Steel
Dimensions
80 x 4.0 mm
Weight
1 kg
Interface
PCI Express x4
Bus Type
PCI Express
Number of Drives
1
Drive Size
22m - M.2 NGFF
Compatible Drive Types
M.2 (PCIe, AHCI, M-Key, NGFF)
M.2 (PCIe, AHCI, M-Key, NGFF)
Drive Installation
Fixed
Supported Drive Height(s)
2242
2260
2280
22110
Performance
Type and Rate
PCI Express 3.0 (8 Gbps)
Connector(s)
Drive Connectors
M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)
Host Connectors
PCI Express x4
Software
OS Compatibility
OS independent, No software or drivers required
Special Notes / Requirements
Note NVMe SSDs require drivers provided by the manufacture of the drive or may be natively provided by the OS (Windows 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support.
Indicators
LED Indicators
Pin header on board for drive LED connection
Physical Characteristics
Material
Steel
Dimensions
80 x 4.0 mm
Weight
1 kg
