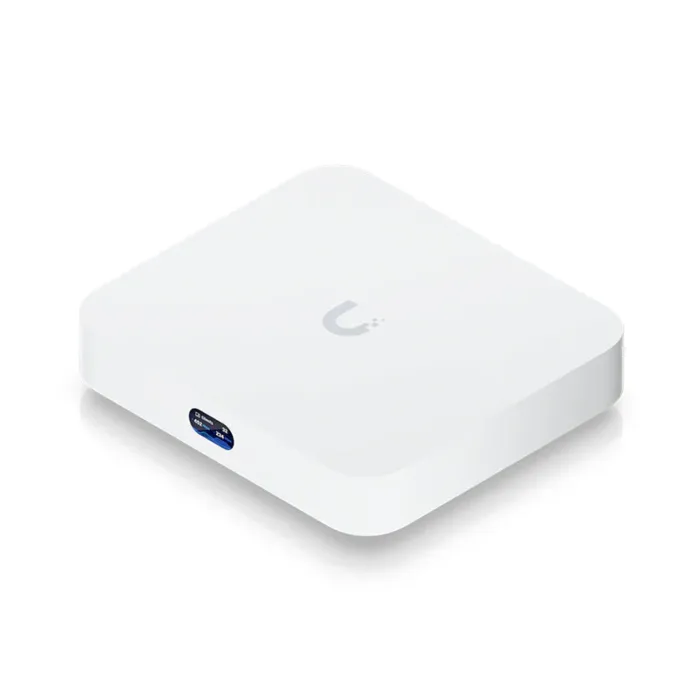

Ubiquiti Cloud Gateway Ultra [UCG-Ultra]
Delivery
Click and Collect
Click and Collect
Ubiquiti Cloud Gateway Ultra [UCG-Ultra]
The Ubiquiti Cloud Gateway Ultra is a powerful and versatile networking solution designed for small businesses and home offices. It offers exceptional performance, advanced features, and easy management, making it a valuable tool for improving your network's efficiency and security.
Key Features of the Ubiquiti Cloud Gateway Ultra:
- Powerful hardware: Quad-core ARM Cortex-A53 processor, 3GB RAM, 16GB eMMC
- High-speed networking: 1 Gbps WAN port, Gigabit Ethernet LAN ports
- Advanced security: Firewall, VPN, IDS/IPS
- Easy management: UniFi app for iOS and Android
- Compact and portable: Small form factor
- Cost-effective: Affordable price
The Ubiquiti Cloud Gateway Ultra [UCG-Ultra] is an excellent choice for businesses and individuals who need a reliable and high-performance network solution. Its advanced features, easy management, and compact design make it a valuable investment for improving your network's efficiency and security.
Mechanical
Dimensions
141.8 x 127.6 x 30 mm
Weight
1 kg
Enclosure material
Polycarbonate
Hardware
Processor
Quad-core ARM Cortex-A53 at 1.5 GHz
System memory
3 GB DDR4
On-board storage
16 GB eMMC
Management interface
Ethernet
Bluetooth
Networking interface
LAN:
(4) GbE RJ45 ports
WAN:
(1) 1/2.5 GbE RJ45 port
IDS/IPS throughput
1 Gbps
Power method
USB type C (5V DC/3A)
Supported voltage range
100–240V AC
Max. power consumption
6.2W
LCM display
0.96" status display
Button
Factory reset
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet
Green: link/activity
Application Requirements
Mobile app UniFi iOS: Version 10.12.0 and later
UniFi Android: Version 10.11.2 and later
