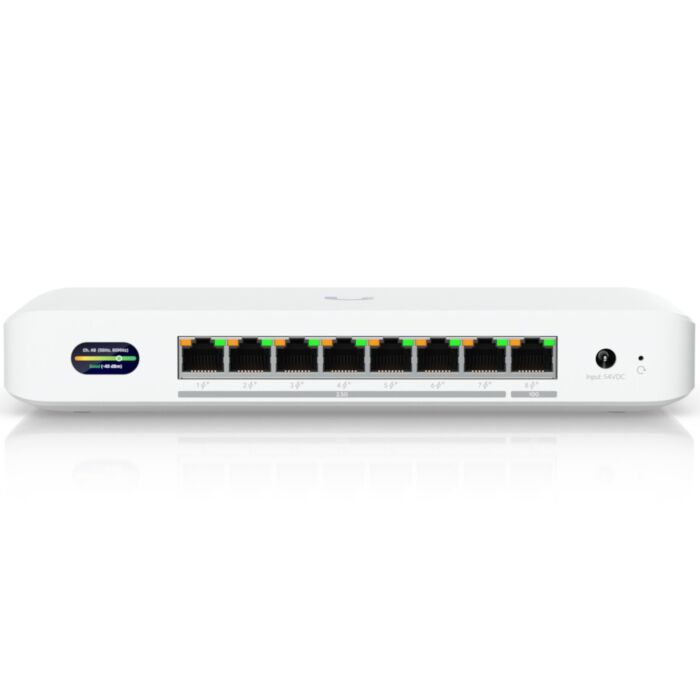

Ubiquiti Device Bridge Switch [UDB-Switch]
Delivery
Click and Collect
Click and Collect
Ubiquiti Device Bridge Switch [UDB-Switch]
Compact PoE+ Switch* (1) 10 GbE Port, (7) 2.5 GbE Ports, 6 GHz, WiFi 7 Integration, Seamless, High-Capacity,UniFi WiFi
The Ubiquiti Device Bridge Switch is a groundbreaking networking device that uniquely integrates a high-performance WiFi 7 radio with a compact, powerful PoE+ switch. It features one 10GbE and seven 2.5GbE RJ45 ports, all with PoE+ capability, allowing it to power and backhaul up to seven other devices, such as access points or cameras, wirelessly. Operating as a high-capacity bridge, it creates a seamless, high-throughput wireless link to your UniFi network, eliminating the need for long Ethernet cable runs. Managed entirely through the UniFi Network application, it is an ideal solution for extending wired network connectivity to remote or hard-to-wire locations with minimal infrastructure.
Key Features
- Integrated WiFi 7 wireless bridge and 8-port PoE+ switch
- (1) 10GbE and (7) 2.5GbE RJ45 ports with PoE+
- High-capacity 6 GHz & 5 GHz WiFi 7 backhaul
- Managed seamlessly via UniFi Network application
- Solves wired connectivity in hard-to-reach locations
Choose the UDB-Switch to solve complex connectivity challenges where running Ethernet is impractical or too costly. It delivers the best of both worlds: the high-speed, reliable backhaul of WiFi 7 (with 6 GHz and 5 GHz bands) and the local power/connectivity of an 8-port managed switch. This allows you to deploy a fully networked cluster of devices—like multiple cameras or access points—in a remote building, attic, or industrial area using only a single power outlet. For installers, integrators, and businesses needing flexible, high-performance network expansion without trenching cables, this device is a revolutionary tool that simplifies deployment and future-proofs connectivity.
Wireless Standard
WiFi 7 (802.11be)
Wireless Bands
6 GHz (2x2) & 5 GHz (2x2)
Max Wireless Data Rate
5.8 Gbps (6GHz), 4.3 Gbps (5GHz)
Ethernet Ports
1 x 10 GbE RJ45, 7 x 2.5 GbE RJ45
PoE Capability
All 8 ports support PoE+ (30W max per port)
Total PoE Budget
35W (with 60W adapter) / 185W (with 210W adapter)
Management
UniFi Network Application (v10.0.156+)
Power Supply
54V DC/1.1A Adapter (Included)
Max Power Consumption
25W (excluding PoE output)
Security
WPA3 SAE (Always On), NDAA Compliant
Display
0.96" LCM status display
Mounting
Desktop or Wall
Dimensions
212.9 x 113 x 32.5 mm
Weight
1 kg
