Ubiquiti EdgeRouter 12 - 10-Port Gigabit Router [ER-12]
Delivery
Click and Collect
Click and Collect

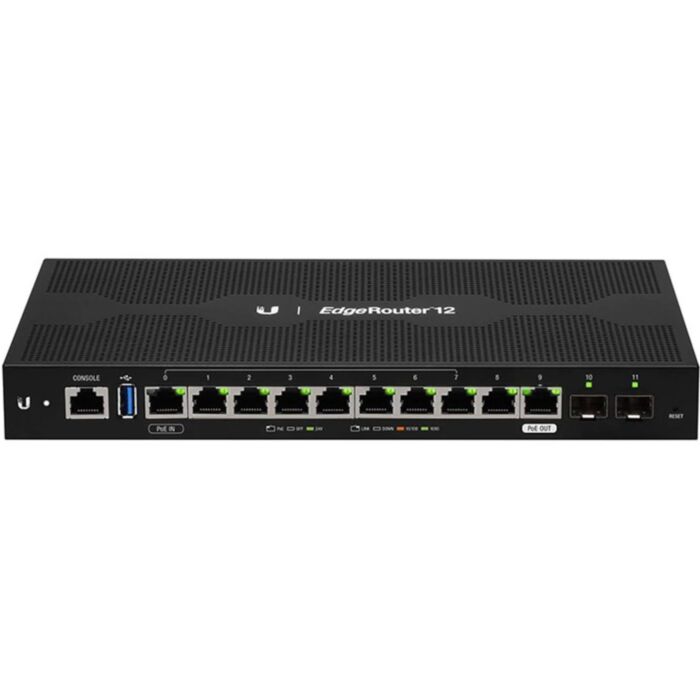

Ubiquiti EdgeRouter 12P [ER-12P-AU]
10-Port Gigabit Router, 2 SFP Ports- 24v Passive PoE In and Out (All Ports) - 1GHz Quad Core Processor - 1GB RAM
10-Port Gigabit Router with PoE Passthrough and 2 SFP Ports
The EdgeRouter 12 offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 6.8 Gbps. Ten Copper Gigabit ports and two independent SFP ports allows for deployment flexibility. The EdgeRouter 12P is a high-performance Gigabit Router with 24V 2-Pair PoE output on each port.
Centralized Management
The EdgeRouter is supported and managed by UNMS (Ubiquiti Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX devices across multiple sites.Model: EdgeRouter 12
Switch Type: Managed Switch
Features:
(10) Gigabit RJ45 routing ports
24V PoE support on RJ45 ports
Ports 0-7 can be configured for line-rate Layer 2 switching.
(2) Gigabit SFP ports
3.4 million packets per second for 64-byte packets
6.8 Gbps for packets 1518 bytes or larger in size
Silent, fanless operation
Compact, durable metal case
Bandwidth/Backplane: 6.8 Gbps
IPv6:
Certification: CE, FCC, IC
L2 / L2+ features:
Number of Ports: 10 x 10/100/1000 Mbps Ethernet RJ45 Ports
SFP Ports: 2 Ports
PoE: Yes
PoE Ports: 10 Ports
PoE Power Budget: 17 W
VLAN:
Management: Web UI, Ubiquiti Network Management System (UNMS), CLI (GUI, Console, SSH, Telnet), SNMP, NetFlow, LLDP, NTP, UBNT Discovery Protocol, Syslog
Standard Protocols: OSPF, RIP, BGP, and MPLS
Interface: 10 x 10/100/1000 Mbps Ethernet RJ45 Ports
Fans: Fanless
Power Supply: 100–240VAC
Power Consumption: 20 W
Security: ACL-Based Firewall, Zone-Based Firewall, Application Identification with Deep Packet Inspection (DPI), NAT
System Requirements: Microsoft Windows XP, Vista or Windows 7, Windows 8, MAC OS, NetWare, UNIX or Linux
Dimensions: 268.1 x 136.5 x 31.1 mm
Weight: 700 g
Warranty: Limited lifetime warranty
Package Contents:
Switch
Power Cord
Quick Installation Guide
