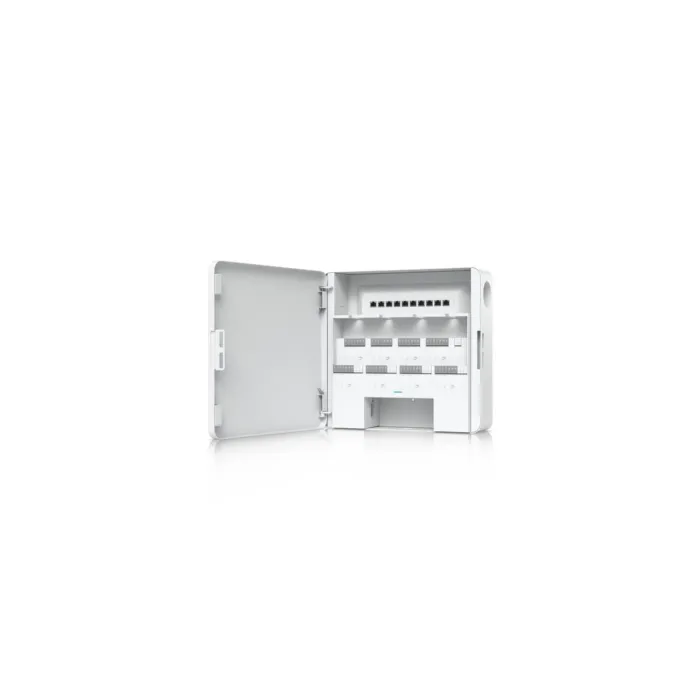

Ubiquiti Enterprise Access Hub EAH-8 8-door entry and exit control
2 Yrs Wty
The Ubiquiti Enterprise Access Hub EAH-8 is a powerful and versatile access control solution designed for businesses and organizations that require a reliable and secure way to manage entry and exit points. With its 8-door capacity, advanced features, and easy-to-use interface, the EAH-8 is a valuable tool for improving security and streamlining operations.
Key Features of the Ubiquiti Enterprise Access Hub EAH-8:
- 8-door capacity
- PoE support
- Digital inputs and outputs
- Integration with UniFi Access application
- Easy installation and configuration
- Reliable and durable construction
- 2-Years warranty
The Ubiquiti Enterprise Access Hub EAH-8 is an essential tool for businesses and organizations that require a robust and reliable access control system. Its advanced features, scalability, and easy management make it a valuable investment for improving security and streamlining operations.
Mechanical
Dimensions
379 x 355 x 105 mm
Weight
9.1 kg
Enclosure material
SGCC housing with PC cover
Mounting material
SGCC wall mount plate
Hardware
Networking interface
(10) 10/100/1000 Base-T
Power method
Universal input, 100–240V AC, Max. 4.4A, 50/60Hz
32–48V DC Lead Acid Battery, Max. 7.5A @32V
Power supply
AC/DC, internal
Max. power consumption
240W
PoE interface
(8) PoE (Pins 1, 2+; 3, 6-)
Voltage range PoE mode
44–57V DC
Total available PoE
60W
Max. PoE wattage per port
15.4W
Button
(1) Factory-reset
Digital input
(8) Inputs for request-to-exit devices
(8) Inputs for door position sensors
(1) Emergency
Dry output relay
(8) Lock terminals (12V or Dry)
(4) AUX terminals for advanced setup (Chime/Siren/Door opener)
Powered output relay
Lock: 12V DC, 1A/ Dry
Aux: Dry only
Operating environment
Indoor use only
Ambient operating temperature
0 to 40° C (32 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
LEDs
PoE in
Steady white: Pending adoption
Steady blue: Adopted
Alternating white/blue: Firmware updating
PoE out
Blinking white: Active signal
Input terminals
Steady white: Active signal
Output relays
Steady white: Relay triggered
Software
Management application
UniFi Access: Version 1.22.17 and later
