Ubiquiti Switch Enterprise 48-port PoE+ [USW-Enterprise-48-PoE] *While Stocks Last*
Delivery
Click and Collect
Click and Collect

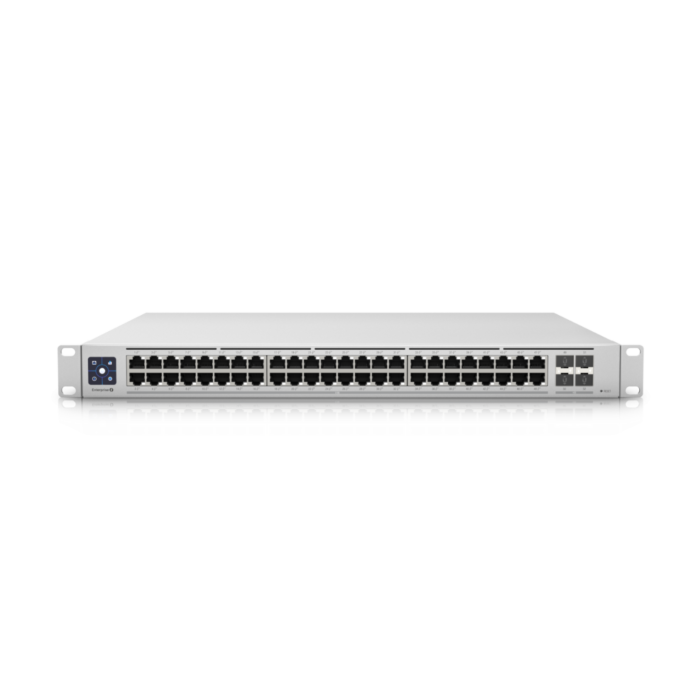

Ubiquiti Switch Enterprise 48-port PoE+ [USW-ENT-48-POE]
48x2.5G Ports/4x 10g SFP+ Ports Uplinks/Managed Layer 3 Switch
The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a
fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+
ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this
switch offers an extensive suite of Layer 2 switching protocols, including
port-specific operation modes (switching, mirroring, or aggregate). The USW
Enterprise 48 PoE also features a 1.3" LCM color touchscreen that
concisely displays key system and connection insights.
Additionally, the USW Enterprise 48 PoE offers enhanced
power supply failure protection when connected to the SmartPower Redundant
Power System (USP RPS sold separately). This switch can be monitored or
configured from anywhere with the powerful, intuitive UniFi Network web
application and mobile app.
Features
(1) 1.3" LCM color touchscreen with AR switch
management
(48) 2.5GbE, 802.3at PoE+ RJ45 ports
(4) 10G SFP+ ports
(1) USP RPS DC input
720W total PoE supply
Layer 3 switching features
Networking interfaces
(48) 100MbE/1GbE/2.5GbE RJ45 port
SFP+ interfaces
(4) 1G/10G SFP+ ports
PoE interfaces
(48) PoE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
Total PoE supply
720 W
Services
SMB Layer 3 PoE Gigabit Ethernet switch
Total non-blocking throughput
160 Gbps
Switching capacity
320 Gbps
Forwarding rate
238.095 Mpps
Max. power consumption (excluding PoE output)
150 W
Power method
(1) Universal AC input, 100-240VAC, 10A Max, 50/60 Hz
(1) USP-RPS DC input, 52VDC, 13.84A; 11.5VDC, 13A
Power supply
AC/DC, internal, 100-240V, 10A max.
Management interface
Ethernet in-band
Display
(1) 1.3" LCM color touchscreen
Bootup animation: bootup in progress
Firmware update icon: rmware updating
Steady white: factory defaults, awaiting adoption
Steady blue: device is adopted
Button
Factory reset
Operating temperature
-5 to 40° C (23 to 104° F)
Operating humidity
10 - 90% noncondensing
Certifications
CE, FCC, IC
Dimensions
442 x 44 x 400 mm
Weight
6.3 kg
