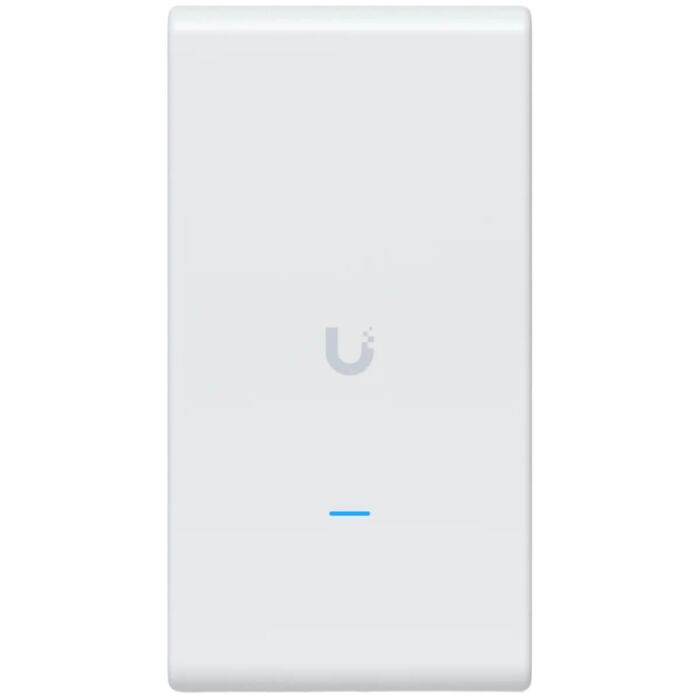

Ubiquiti U6 Mesh Pro Indoor/Outdoor WiFi 6 Access Point [U6-Mesh-Pro]
The Ubiquiti UniFi U6 Mesh Pro is a powerful and versatile WiFi 6 access point designed for both indoor and outdoor use. It offers exceptional performance, seamless mesh networking, and a compact and weatherproof design.
Key Features of the Ubiquiti UniFi U6 Mesh Pro:
- WiFi 6 technology
- Mesh networking capabilities
- Indoor/outdoor use
- Weatherproof design
- Easy setup and management
The Ubiquiti UniFi U6 Mesh Pro: [U6-Mesh-Pro] is an excellent choice for businesses and homeowners who need a reliable and high-performance WiFi network. Its advanced features, versatile design, and easy management make it a valuable investment for staying connected and productive.
Mechanical
Dimensions
343.2 x 181.2 x 60.2 mm
Weight
1 kg
Enclosure material
UV-stabilized polycarbonate
Mount material
Aluminum alloy, steel
Pole mount diameter
1~2.5" on pipe outer diameter
Weatherproofing
IPX6
Hardware
Networking interface
(2) GbE RJ45 ports
Management interface
Ethernet
WiFi
Power method
PoE
Power supply
UniFi PoE switch
48V, 0.5A PoE adapter (Included)
Supported voltage range
42.5-57V DC
Max. power consumption
9W
Max. TX power
2.4 GHz
22 dBm
5 GHz
27 dBm
MIMO
2.4 GHz
2 x 2 (DL/UL MU MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz
573.5 Mbps (BW40)
5 GHz
2.4 Gbps (BW160)
Antenna gain
2.4 GHz
8 dBi
5 GHz
8 dBi
LEDs
White/blue
Button
Factory reset
Mounting
Wall, pole (Included)
Ambient operating temperature
-30 to 60° C (-22 to 140° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
350+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11ac
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network
Version 8.1.127 and later
