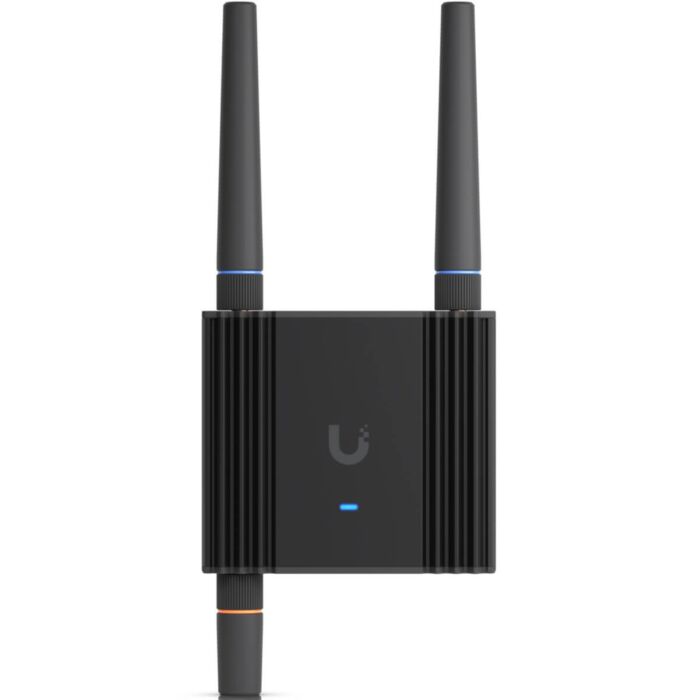

Ubiquiti UMR-Ultra, Ultra-compact Managed LTE Mobile Router [UMR-Ultra]
Delivery
Click and Collect
Click and Collect
Ubiquiti UMR-Ultra, Ultra-compact Managed LTE Mobile Router [UMR-Ultra]
The Ubiquiti UMR-Ultra is an ultra-compact, managed LTE mobile router designed for reliable connectivity in remote or mobile environments. It supports LTE Cat 4 with multiple bands, WiFi 4 (2.4 GHz), and dual FE RJ45 ports. With USB Type-C and ATX DC power options, it’s versatile for various setups. Its rugged design, DIN rail/wall mounting, and wide operating temperature range make it ideal for industrial, IoT, and mobile applications. The UMR-Ultra ensures seamless connectivity and management, making it a robust solution for challenging environments.
Key features of the Ubiquiti UMR-Ultra:
- LTE Cat 4 with multiple bands (up to 150 Mbps download)
- WiFi 4 (2.4 GHz) and dual FE RJ45 ports
- USB Type-C and ATX DC power options
- Rugged design with DIN rail/wall mounting
- Wide operating temperature range (-30 to 70° C)
The UMR-Ultra offers reliable LTE and WiFi connectivity in a compact, rugged design. Its versatile power options and wide temperature range make it perfect for industrial, IoT, and mobile applications.
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Polycarbonate
Management Interface
Ethernet
Networking Interface
(2) FE RJ45 ports
LTE Category
Cat 4
WiFi Standard
WiFi 4 (2.4 GHz)
Power Supply
USB Type-C (5V DC/2A)
4-pin ATX DC power socket (9-30V DC)
Max. Power Consumption
5.7W
SIM
nano SIM
LTE Bands
B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
LTE Throughput
Download: 150 Mbps
Upload: 50 Mbps
Max. WiFi TX Power
17 dBm
Antenna SMA Ports
(1) Mobile 1: SMA female (1Rx)
(1) Mobile 2: SMA female (1Tx/1Rx)
(1) WiFi: RP-SMA female
External Antennas
(2) Mobile/LTE antennas (SMA male)
(1) WiFi antenna (RP-SMA male)
LED
Status: blue/white
Button
Factory reset
Mounting
DIN rail/wall mount (Included)
Operating Temperature
-30 to 70° C (-22 to 158° F)
Operating Humidity
10 to 90% noncondensing
Certifications
FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance
Supported WiFi Data Rates
802.11b: 1-11 Mbps
802.11g: 6-54 Mbps
802.11n (WiFi 4): 6.5-150 Mbps (MCS0-MCS7, HT 20/40)
Dimensions
Without antennas: 84 x 82 x 26 mm
With antennas: 193.5 x 82 x 26 mm
Weight
1 kg
