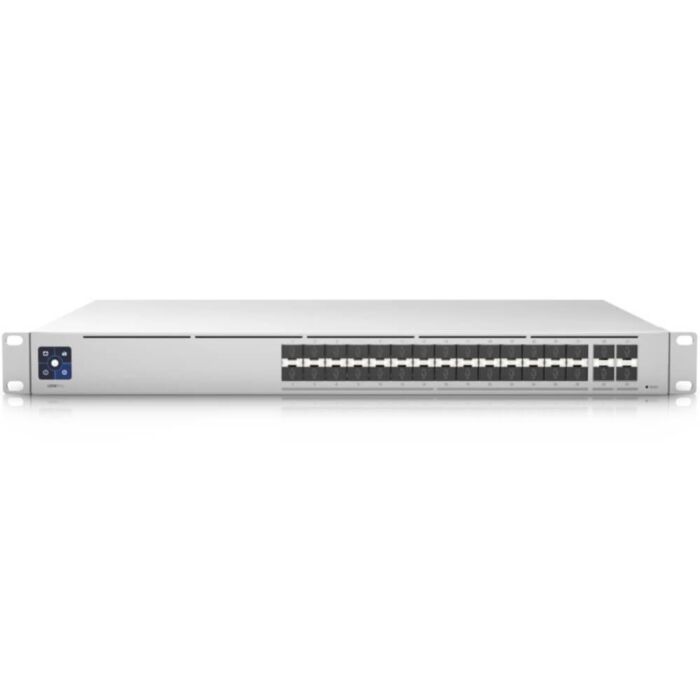

Ubiquiti UniF Aggregation Switch Pro [USW-Pro-Aggregation]
Delivery
Click and Collect
Click and Collect
28-port 10G SFP+ & 4-port 25G SFP28 Ports, Layer 3 Switch, 760Gbps Switching Capacity
Mechanical
Dimensions
442 x 325 x 44 mm
Weight
Without Mount: 4.6 kg
With Mount: 4.7 kg
Enclosure Material
SGCC Steel
Hardware
Total Non-Blocking Throughput
380 Gbps
Switching Capacity
760 Gbps
Forwarding Rate
565.44 Mpps
Max. Power Consumption
100W
Power Method
(1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 8.7A
Power Supply
AC/DC, Internal, 100W
Network Interface
(28) 1/10 Gbps SFP+ Ethernet
(4) 1/10/25 Gbps SFP28 Ethernet
LCM Display
(1) 1.3" Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
LEDs
SFP28/SFP+: White, Link and Activity
Management Interface
Ethernet In-Band
Modes
SMB Layer 3 10/25 G Fiber Switch
ESD/EMP Protection
Air: ± 16kV, Contact: ± 12kV
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 - 90% Noncondensing
Certifications
CE, FCC, IC
