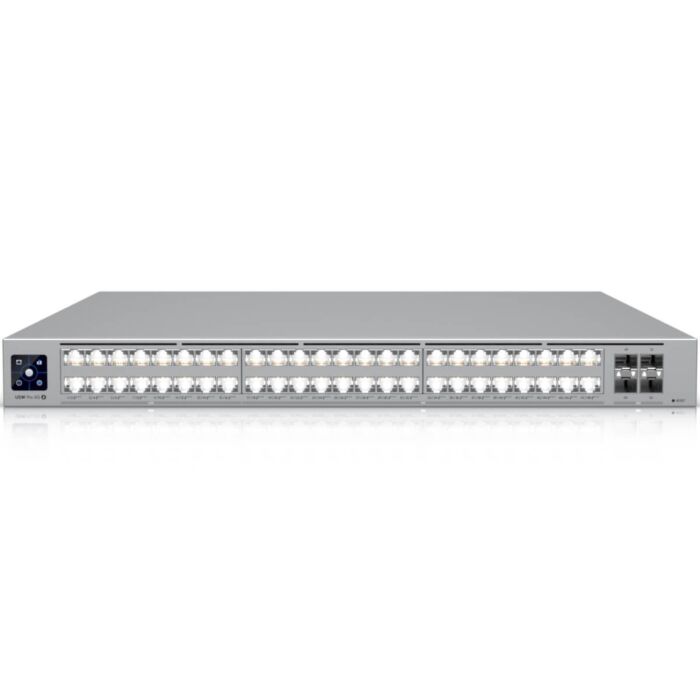

Ubiquiti UniFi Professional-grade 48-port Layer 3 Etherlighting PoE+++ Switch [USW-Pro-XG-48-PoE]
Delivery
Click and Collect
Click and Collect
Ubiquiti UniFi Professional-grade 48-port Layer 3 Etherlighting PoE+++ Switch [USW-Pro-XG-48-PoE]
The Ubiquiti UniFi USW-Pro-XG-48-PoE is an enterprise-grade, Layer 3 switch designed for high-density PoE+++ deployments. Featuring 48 ports (16 x 2.5GbE & 32 x 10GbE RJ45, all 90W PoE+++) and 4x 25G SFP28 uplinks, it delivers 920Gbps switching capacity for data centers, smart buildings, and AV-over-IP systems. With 1,080W total PoE budget, it powers PTZ cameras, WiFi 7 APs, and Pro AV gear effortlessly. The 1U rack-mount design includes a 1.3" touchscreen, Etherlighting status indicators, and dual power inputs (AC/RPS) for redundancy. Managed via UniFi Network (v9.1+), it supports advanced L3 routing, QoS, and Pro AV profiles (Dante, NDI, SDVoE).
Key Features
- 48 x PoE+++ ports (16 x 2.5G + 32 x 10G RJ45)
- 4 x 25G SFP28 uplinks
- 920Gbps switching & 684Mpps forwarding
- 1,080W PoE budget (90W/port)
- Layer 3 routing & Pro AV optimized
- UniFi Network managed
The USW-Pro-XG-48-PoE is ideal for high-power, high-speed networks, supporting WiFi 7 APs, IP cameras, and AV-over-IP. Its 25G uplinks future-proof infrastructure, while Layer 3 features simplify VLAN routing. NDAA-compliant and UniFi-managed, it’s perfect for enterprise, education, and broadcast studios.
General
Form Factor
1U rack-mount
Enclosure Material
SGCC steel
Dimensions
442 x 480 x 44 mm
Weight
8.7 kg (without brackets), 8.8 kg (with brackets)
Ports
2.5GbE RJ45 PoE+++ Ports
16 (15.4W–90W)
10GbE RJ45 PoE+++ Ports
32 (15.4W–90W)
25G SFP28 Uplinks
4 (25G/10G/1G)
PoE/PoE+
PoE Standard
IEEE 802.3af/at/bt (PoE+++)
Max PoE Output per Port
90W (PoE+++)
Total PoE Budget
1,080W (200–240V), 972W (100–120V)
Performance
Switching Capacity
920 Gbps
Forwarding Rate
684 Mpps
Packet Buffer
8 MB
MAC Address Table
128,000 entries
VLAN Support
1,000
Layer 3 Features
IPv4 Routing
256,000 entries
Inter-VLAN Routing
Yes
Static Routing
Yes
DHCP Server/Relay
Yes
Layer 2 Features
LACP
Yes
STP/RSTP
Yes
QoS (DSCP)
Yes
IGMP Snooping
Yes
Storm Control
Yes
Pro AV Support
Profiles
Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron
Jumbo Frames
9,216 bytes
Power & Redundancy
Power Supply
1,350W internal
Input Voltage
100–240V AC
Backup Power
RPS DC input (USP-RPS)
Max Power Consumption
1,280W (200–240V), 1,172W (100–120V)
Management
UniFi Network Version
9.1.120+
LCM Display
1.3" touchscreen
Etherlighting
Port status LEDs
Certifications
Compliance
CE, FCC, IC, NDAA
ESD Protection
±30kV (air), ±20kV (contact)
Environmental
Operating Temperature
-5°C to 40°C (23°F to 104°F)
Humidity
10–90% non-condensing
