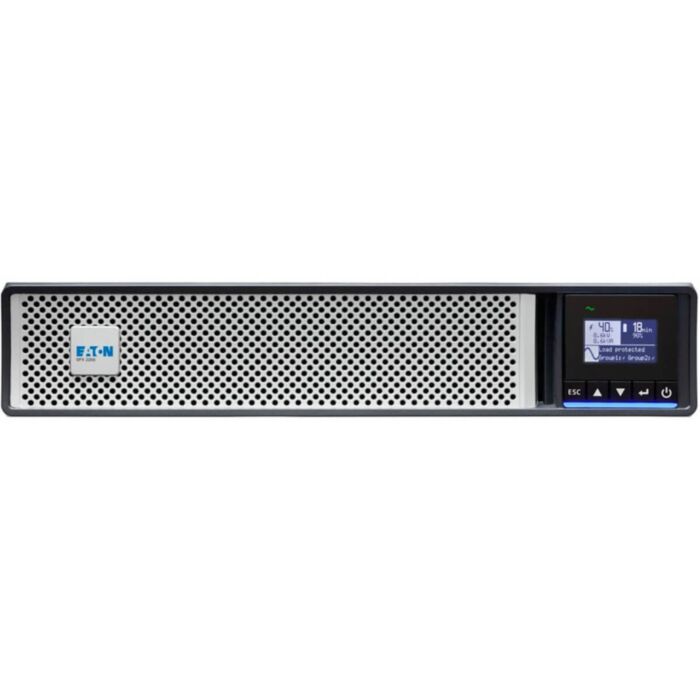

Eaton 5PX Gen 2 Line Interactive LCD 3000VA/3000W Rackmount UPS [5PX3000IRT2UAUG2]
Delivery
Click and Collect
Click and Collect
Eaton 5PX Gen 2 Line Interactive LCD 3000VA/3000W Rackmount UPS [5PX3000IRT2UAUG2]
The Eaton 5PX Gen 2 3000VA/3000W UPS is a premium line-interactive rackmount solution offering pure sine wave output and automatic voltage regulation (AVR) for mission-critical IT infrastructure. This 2U rack/tower convertible unit features an LCD interface for real-time monitoring and supports up to 4 external battery modules (EBMs) for extended runtime. With 98% efficiency, Unity power factor (VA=W), and compatibility with virtual environments (VMware/Hyper-V), it ensures optimal power protection for servers, storage, and network devices. Includes 8x C13 + 2x C19 outlets, USB/RS232/network management, and meets global certifications (CE, UL, ENERGY STAR).
Key Features
- 3000VA/3000W line-interactive UPS
- Pure sine wave + AVR (160–294V input range)
- LCD display + Eaton Intelligent Power Software
- Scalable runtime (4x EBM support)
- Rack/tower convertible (2U)
Ideal for data centers and enterprises, the 5PX Gen 2 delivers clean power, high efficiency, and flexible scalability. Its Unity PF, virtual-environment support, and 3-year warranty ensure reliable protection against outages, surges, and fluctuations-safeguarding critical equipment with minimal downtime.
Topology
Line-interactive
Capacity
3000VA / 3000W (Unity PF)
Output Waveform
Pure sine wave
Voltage Regulation
AVR (160–294V adjustable)
Efficiency
98% (eco-mode)
Form Factor
2U rack/tower convertible
Outlets
8x C13, 2x C19
Battery
6x 12V/9Ah (user-replaceable)
Runtime (Half Load)
9 min (expandable via 4x EBMs)
Management
LCD, USB, RS232, dry contacts, optional network card
Certifications
CE, UL, cTUVus, ENERGY STAR, RoHS
Compliance
IEC/EN 62040-1/2/3, MIL-STD-810H
Operating Temp
0°–40°C (32°–104°F)
Dimensions (HxWxD)
85.5 x 438 x 603 mm
Weight
31.7 kg
