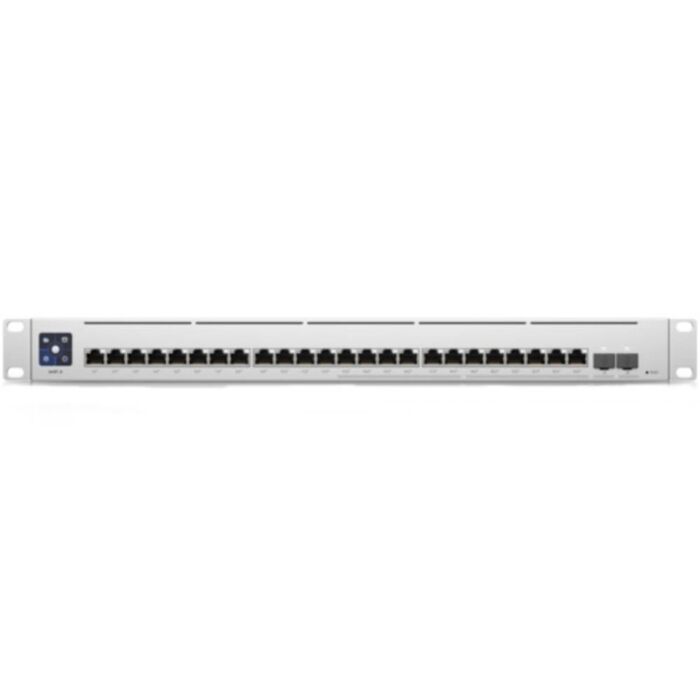

Ubiquiti Switch Enterprise 24-port PoE+ [USW-Enterprise-24-PoE]
Delivery
Click and Collect
Click and Collect
Ubiquiti Switch Enterprise 24-port PoE+ [USW-ENT-24-POE]
12x2.5G 12x1G Ports/2x 10g SFP+ Ports Uplinks/Managed Layer 3 Switch
Managed Layer 3 switch with (12) 2.5G RJ45 ports with PoE+ for Wi-Fi 6 APs, (12) Gigabit RJ45 ports with PoE+, and (2) 10G SFP+ ports for fiber uplinks.
Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your Wi-Fi 6 APs and 10G fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System (USP-RPS) support for intelligent protection from internal PSU interruption or failure.
Features
(12) 2.5G 802.3af/at PoE+ RJ45 ports
(12) 1G 802.3af/at PoE+ RJ45 ports
(2) 10G SFP+ ports
400W total PoE capacity
1.3" touchscreen with AR switch management
UniFi SmartPower RPS DC input
Hardware
Total Non-Blocking Throughput
62 Gbps
Switching Capacity
124 Gbps
Forwarding Rate
92.25 Mpps
Max. Power Consumption
550W
Power Method
(1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Power Supply
AC/DC, Internal, 550W
Management Interface
Ethernet In-Band
Networking Interfaces
(12) 10/100/1000 Mbps RJ45 Ethernet
(12) 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces
(2) 1/10G SFP+
PoE Interfaces
(24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE
34.2W
Voltage Range 802.3af Mode
44 to 57V
Voltage Range 802.3at Mode
50 to 57V
Services
SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 - 95% Noncondensing
Certifications
CE, FCC, IC
LEDs
System
(1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet
White: Link or Activity
SFP+
White: Link or Activity
Mechanical
Dimensions
442.4 x 43.7 x 325 mm
Weight
Without Mount
5.11 kg
With Mount
5.2 kg
Enclosure Materials
SGCC Steel
Mount Material
SGCC Steel
