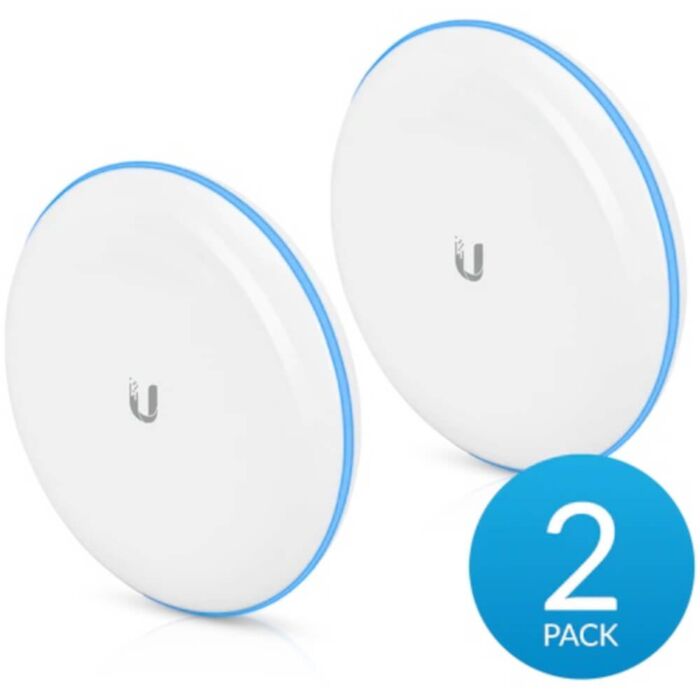

Ubiquiti UniFi Building-to-Building Bridge - 60GHz 1.7Gbps Link - Pack of 2x - Complete PtP Link [UBB]
SKU
708801
MPN
UBB
View all technical specifications
Delivery
Back-Order
Delivery
Back-Order
Call us on 1300 133 165 or speak to us via Live Chat for ETA
This Item is Available for Back-order. Speak with us on Live Chat for an ETA, or to find an alternative product
Call us on 1300 133 165 or speak to us via Live Chat for ETA
Click and Collect
Melbourne CBD
Back-Order
Click and Collect
Back-Order
Call us on 1300 133 165 or speak to us via Live Chat for ETA
This Item is Available for Back-order. Call us for estimated ETA
Mitcham
Back-Order
Click and Collect
Back-Order
Call us on 1300 133 165 or speak to us via Live Chat for ETA
This Item is Available for Back-order. Call us for estimated ETA
A$949.00
Ubiquiti UniFi Building-to-Building Bridge - 60GHz 1.7Gbps Link - Pack of 2x - Complete PtP Link [UBB]
Antenna Gain
2.4 GHz (BLE)
2 dBi
5 GHz
10 dBi
60 GHz
17.2 dBi
GPS
Yes
Max. TX Power (EIRP)
5 GHz
25 dBm
60 GHz
32 - 36.5dBm
60 GHz Elevation Beamwidth
30°
60 GHz Azimuthal Coverage
±60°
Interfaces
Networking
(1) 10/100/1000 Ethernet Port
Management
Bluetooth
Enclosure
UV-Resistant Polycarbonate
Power Method
802.3af Supported
Passive Power over Ethernet (48V)
Power Supply
UniFi PoE Switch
48V, 0.32A Gigabit PoE Adapter (Included)
Max Power Consumption
11W
Wind Loading
56 N @ 200 km/h (12.6 lbf @ 125 mph)
Wind Survivability
200 km/h (125 mph)
Mounting Pole-Mount
(Kit Included)
ESD/EMP Protection
± 24kV Contact/Air
Operating Temperature
-40 to 60° C (-40 to 140° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
Dimensions
140 x 140 x 90 mm
Weight
1 kg
