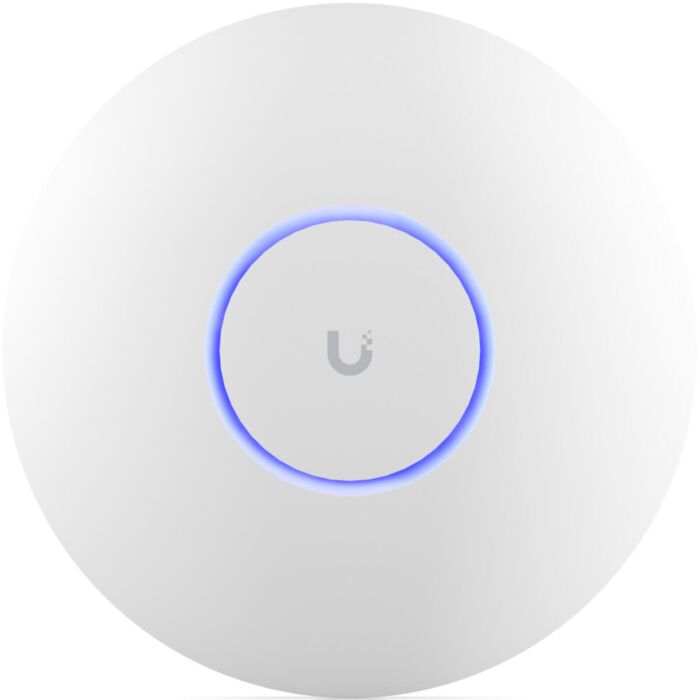

Ubiquiti UniFi WiFi 7 AP [U7-Pro] 6 GHz Support, 2.5 GbE Uplink, 9.3 Gbps Over-the-air Speed, PoE+ Power
Delivery
Click and Collect
Click and Collect
Ubiquiti UniFi WiFi 7 AP [U7-Pro]
6 GHz Support, 2.5 GbE Uplink, 9.3 Gbps Over-the-air Speed, PoE+ Power
The Ubiquiti UniFi WiFi 7 AP is a powerful and versatile wireless access point designed for high-performance networking environments. It offers cutting-edge features like WiFi 7 support, 2.5 Gbps uplink, and 9.3 Gbps over-the-air speed, making it ideal for demanding applications.
Key Features:
- WiFi 7 support
- 2.5 Gbps uplink
- 9.3 Gbps over-the-air speed
- MU-MIMO
- Beamforming
- Band steering
- Easy setup and management
- Reliable and durable construction
- 2-Year warranty
The Ubiquiti UniFi WiFi 7 AP [U7-Pro] is a valuable investment for businesses and organizations that require a high-performance wireless network. Its advanced features, powerful performance, and easy management make it an ideal choice for demanding applications.
Mechanical
Dimensions
Ø206 x 46 mm
Weight
1 kg
Enclosure material
Polycarbonate, metal
Mount material
Stainless steel (SUS304), galvanized steel (SGCC)
Hardware
Networking interface
(1) 1/2.5 GbE RJ45 port
Management interface
Ethernet
Power method
PoE+
Power supply
UniFi PoE switch
Supported voltage range
44-57V DC
Max. power consumption
21W
Max. TX power
2.4 GHz
22 dBm
5 GHz
26 dBm
6 GHz
23 dBm
MIMO
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
6 GHz
2 x 2 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz
688 Mbps (BW40)
5 GHz
4.3 Gbps (BW240)
6 GHz
5.7 Gbps (BW320)
Antenna gain
2.4 GHz
4 dBi
5 GHz
6 dBi
6 GHz
5.8 dBi
LEDs
White/blue
Button
Factory reset
Mounting
Wall/ceiling (Included)
Ambient operating temperature
-30 to 60° C (-22 to 140° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Software
WiFi standards
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
8 per radio
VLAN
802.1Q
Advanced QoS
Per-user rate limiting
Guest traffic isolation
Supported
Concurrent clients
300+
Supported Data Rates
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network
Version 8.0.26 and later
UniFi OS
Version 3.2 and later
